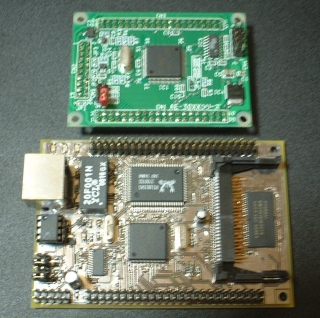

↑ネットワークの３色ＬＥＤがキレイです。
６４ＭＢのフラッシュを認識しています→
|
||||||||||||||||||||
+DP83902A - eeprom ESA: 00:02:cb:01:33:85
Ethernet eth0: MAC address 00:02:cb:01:33:85
IP: 192.168.0.199/255.255.255.0, Gateway: 0.0.0.0
Default server: 192.168.0.9, DNS server IP: 0.0.0.0
RedBoot(tm) bootstrap and debug environment [ROM]
Non-certified release, version UNKNOWN - built 18:10:18, Apr 3 2003
Platform: H8MAX (H8/300H)
Copyright (C) 2000, 2001, 2002, Red Hat, Inc.
RAM: 0x00400000-0x005f4000, 0x00400000-0x005f4000 available
RedBoot> load -r -b 0x400000 linux-sato2.bin
Raw file loaded 0x00400000-0x00516ef7, assumed entry at 0x00400000
RedBoot> exec -c console=ttySC1,38400
Now booting linux kernel:
Entry Address 0x00400000
Cmdline : console=ttySC1,38400
Linux version 2.4.20-uc0 (ysato@mitou) (gcc バージョン 3.3) #612 2003年 5月 30日 金曜日 16:29:44 JST
uClinux H8/300H
Target Hardware: H8MAX
H8/300 series support by Yoshinori Sato <ysato@users.sourceforge.jp>
Flat model support (C) 1998,1999 Kenneth Albanowski, D. Jeff Dionne
On node 0 totalpages: 1524
zone(0): 0 pages.
zone(1): 1524 pages.
zone(2): 0 pages.
Kernel command line: console=ttySC1,38400
virtual vector at 0x00ffbf20
Calibrating delay loop... 8.29 BogoMIPS
Memory available: 804k/884k RAM, 0k/0k ROM (917k kernel code, 195k data)
Dentry cache hash table entries: 1024 (order: 1, 8192 bytes)
Inode cache hash table entries: 512 (order: 0, 4096 bytes)
Mount-cache hash table entries: 512 (order: 0, 4096 bytes)
Buffer-cache hash table entries: 1024 (order: 0, 4096 bytes)
Page-cache hash table entries: 2048 (order: 1, 8192 bytes)
POSIX conformance testing by UNIFIX
Linux NET4.0 for Linux 2.4
Based upon Swansea University Computer Society NET3.039
Initializing RT netlink socket
Starting kswapd
SuperH SCI(F) driver initialized
ttySC0 at 0x00ffffb0 is a SCI
ttySC1 at 0x00ffffb8 is a SCI
ttySC2 at 0x00ffffc0 is a SCI
Uniform Multi-Platform E-IDE driver Revision: 6.31
ide: Assuming 50MHz system bus speed for PIO modes; override with idebus=xx
hda: probing with STATUS(0x50) instead of ALTSTATUS(0x00)
hda: SanDisk SDCFB-64, ATA DISK drive
ide0 at 0x00200000-0x0020000f,0x0060000c on irq 17
hda: 125440 sectors (64 MB) w/1KiB Cache, CHS=490/8/32
Partition check:
hda: hda1 hda2 hda4
ne.c:v1.10 9/23/94 Donald Becker (becker@scyld.com)
Last modified Nov 1, 2000 by Paul Gortmaker
NE*000 ethercard probe at 0x800600: 00 02 cb 01 33 85
eth0: NE2000 found at 0x800600, using IRQ 16.
NET4: Linux TCP/IP 1.0 for NET4.0
IP Protocols: ICMP, UDP, TCP
IP: routing cache hash table of 512 buckets, 4Kbytes
TCP: Hash tables configured (established 512 bind 1024)
Sending BOOTP requests . OK
IP-Config: Got BOOTP answer from 192.168.0.9, my address is 192.168.0.199
IP-Config: Complete:
device=eth0, addr=192.168.0.199, mask=255.255.255.0, gw=255.255.255.255,
host=192.168.0.199, domain=, nis-domain=(none),
bootserver=192.168.0.9, rootserver=192.168.0.9, rootpath=
Looking up port of RPC 100003/2 on 192.168.0.9
Looking up port of RPC 100005/1 on 192.168.0.9
VFS: Mounted root (nfs filesystem).
Freeing unused kernel memory: 36k freed (0x4ee000 - 0x4f6000)
Warning: unable to open an initial console.
